LNG Gas Fueling Stations, Cryogenic Gasoline Pump LNG Gas Station, LNG Gas Filling Station

Large Image : LNG Gas Fueling Stations, Cryogenic Gasoline Pump LNG Gas Station, LNG Gas Filling Station

Product Details:

Chat Now

LNG Gas Fueling Stations, Cryogenic Gasoline Pump LNG Gas Station, LNG Gas Filling Station

Description

Model NO.:	WGLF-00	Pressure Level:	High Pressure (10.0MPa≤p<100.0MPa)
Volume:	440L/470L/520L	Storage Medium:	Liquefied Gas
Transport Package:	Bulk Load	Specification:	CNG Gas Resources
Trademark:	WellCare	Origin:	China
HS Code:	8413709990	Production Capacity:	1000 Sets Per Year

LNG Dispenser Series of CNG Gas Filling Stations
Basic type	Mass flow CNG dispenser	Single-line single-hose, single-line dual-hose, single-line four-hose
		Dual-line single-hose, dual-line dual-hose, dual-line four-hose
		Three-line single-hose, three-line dual-hose, three-line four-hose
Technical Parameters	Applicable medium	LNG
	Accuracy measuring	±1.0%
	Range of flow	(2-30)kg/min(3-40)Nm³/min
	Rated working pressure	20MPa
	Max. working pressure	25MPa
	Compressive strength	37.5MPa
	Ambient temperature	-40ºC-+50ºC
	Explosive-proof grade	Exd AT4Gb
	Power supply	220V±15% 50Hz±1Hz
	Unit of measurement	Kg/Nm³
	Minimum scale reading	0.01
	Single counter range	0~9999.99
	Totalize range	0~99999999.99
	Rated power	Single-hose:100W,dual-hose:200W, Four-hose:400W

System Flow Chart of LNG Gas Station and natural gas fueling station:

Safe & Reliable Fueling for all NGVs of LNG Gas Station and natural gas fueling station:
Chart vehicle fueling stations are dedicated to safely and reliably delivering fuel for all natural gas vehicles (NGV) and fleets. LNG Gas Station, natural gas fueling station, including liquid biogas (LBG), is typically used for heavy duty vehicles such as trucks, buses and special handling vehicles, and CNG for passenger cars and vans.
LNG Gas fueling stations is widely used among or daily lifes. We use LNG Gas fueling stations to fill the daily fuels in our cars for running, and other factories for gas using. The consists parts of LNG Gas fueling stations are PLC control system, pump, gas storage tank, LNG liquid charing device.

CNG is mainly methane (CH4), with small amounts of propane (C3H8) and butane (C4H10) in CNG fueling stations. Compared with gasoline, cng fueling stationshas a higher octane number (more than 100) and calorific value, the anti-knock performance of CNG fueling stations is significantly better than that of gasoline, and CNG fueling stations the combustion performance is also better. CNG fueling stations is an ideal vehicle fuel with green significance.

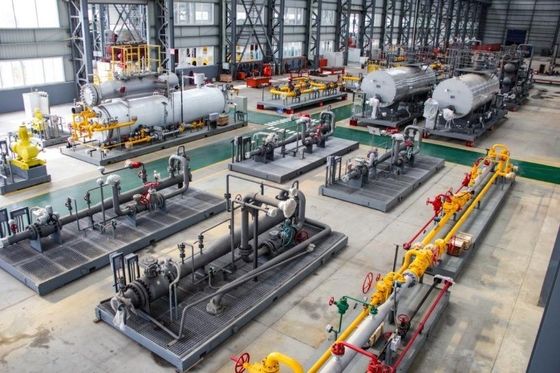

Design equipments of lng gas filling station:
