Product Parameters
| Model Number | WG-HA01 | Pipe thickness | 2 mm |
| Brand Name | WellCare Gas | coefficient of friction | 1 |
| Pipe caliber | 3-10 mm / Customized | material | brass |
| Impact strength | 60 Mpa | Suitable fluids | Oxygen, nitrogen, carbon dioxide |
Semi-automatic switching gas busbars, designed to provide uninterrupted gas supply requirements. This form of sink. Flow drain adopts the main supply cylinder group and the spare cylinder group double source structure, due to the difference in the pressure setting of the main supply cylinder group and the standby cylinder group pressure reducer, when the pressure of the main supply cylinder group drops to the set pressure, the system starts to switch automatically, and the standby cylinder group starts to supply gas, so as to achieve uninterrupted gas supply function, in order to achieve the next automatic switching, after the empty cylinder is exchanged, the gas regulator of the two cylinder groups is re-set, this form of sink. The flow bar is stabilized by the secondary pressure reduction of the pressure regulator of the main line.

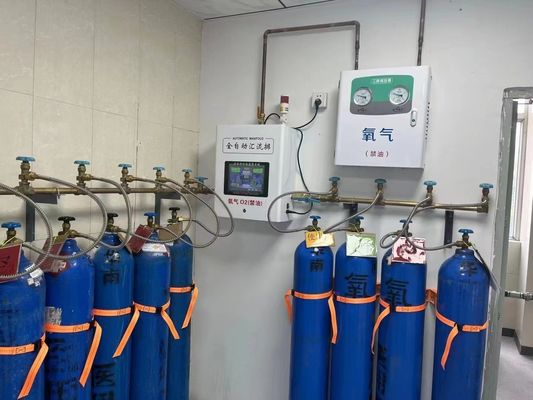

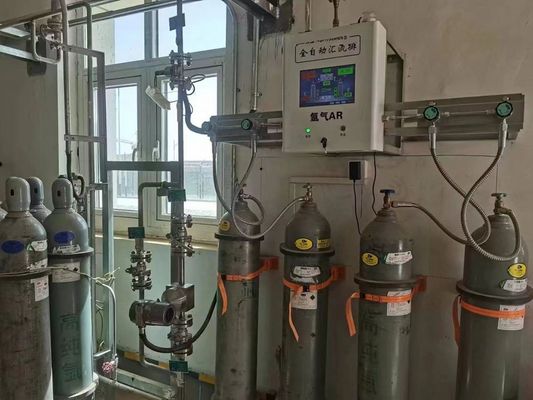

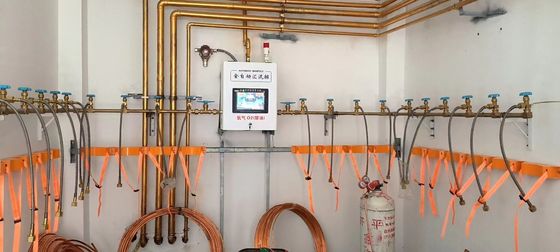

Product features Gas sinks. Flow drain is mainly suitable for units that continuously consume bottled gas. Gas sinks. When the flow row is used, several or even dozens of cylinders are centrally connected in the sink. On the flow duct, the gas is filtered, depressurized and stabilized and transported to the place of use. Gas sinks. The flow drain has the characteristics of compact structure, convenient management and safety.
1. Sink. Runner catheters are made of high-quality stainless steel or brass tubes.
2. The whole system has been tested for strict strength and air tightness, and is safe.
3. Sink. The flow row design is available in a variety of forms for easy installation and additional brackets.
4. Configure large-flow gas pressure reducer.
5. Open structure, beautiful and practical, durable.
6. Pressure switch interface and expansion interface can be reserved.
7. The easy-to-maintain gas filtration device can effectively block dust and impurities in the gas. (The pressure reducer itself has a filter device, and an additional filter can also be installed).

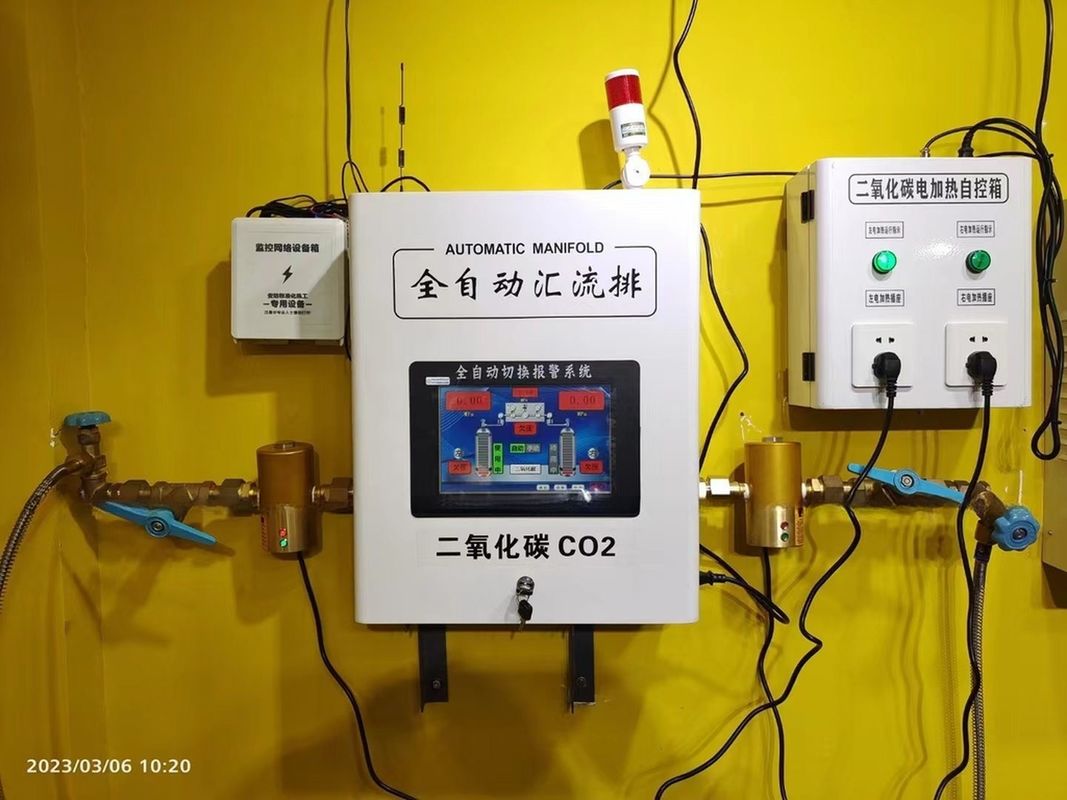

8. The switching valve design is easy to switch between the main supply cylinder group and the standby gas cylinder group and adjust the pressure. If automatic switching busbars are selected, there is no need to manually switch.
Use Sink. Flow drain can save the number of cylinder changes, reduce the labor intensity of workers and save labor capital.
Centralized management of high-pressure gas can reduce the existence of potential safety hazards.
It can save site space and make better use of site space.
Detailed Photos
