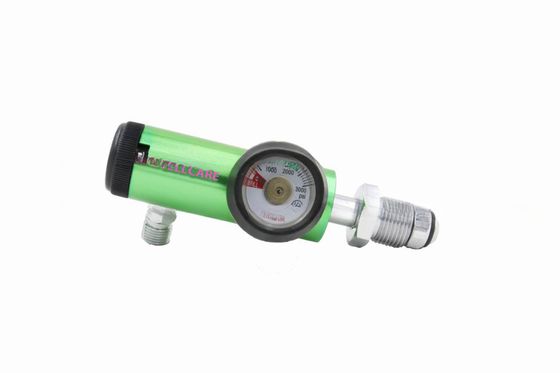

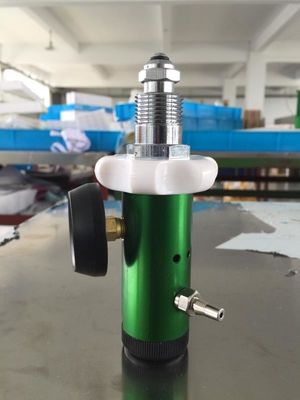

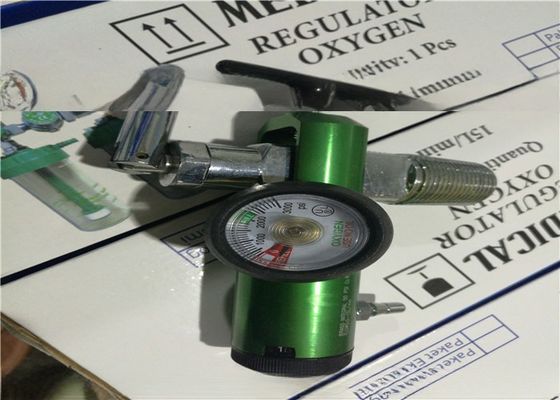

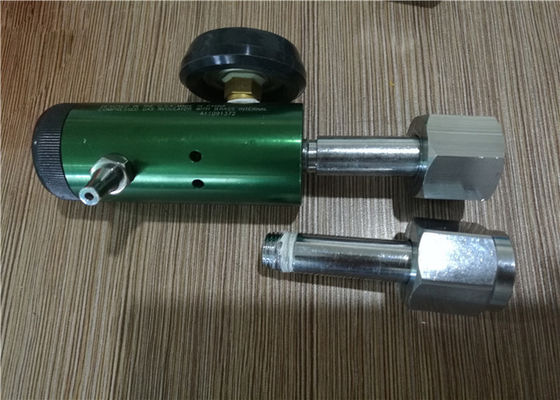

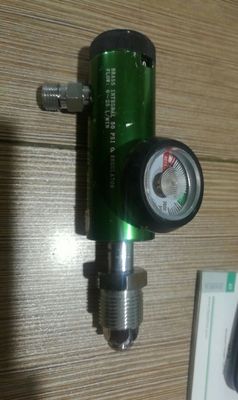

Mini Oxygen Regulator with Aluminum Material 0-8 Lpm CGA 540 Connector Brass Sleeve

Large Image : Mini Oxygen Regulator with Aluminum Material 0-8 Lpm CGA 540 Connector Brass Sleeve

Product Details:

Contact Now

Mini Oxygen Regulator with Aluminum Material 0-8 Lpm CGA 540 Connector Brass Sleeve

Description

Model NO.:	CGA 540	Structure:	Piston
Material:	Alloy	Transport Package:	Carton Box
Specification:	Aluminum Material	Trademark:	Wellcare
Origin:	China	HS Code:	90192000
Production Capacity:	200, 000 Pieces Per Year

Principle of oxygen regulator:

after the original high-pressure oxygen in the oxygen station or oxygen cylinder is depressurized by the pressure reducer of the oxygen regulator, it changes from the original high-pressure state to low-pressure oxygen that can be directly breathed by the human body. After being regulated by the flow regulation part of the regulator, oxygen can be output from the output channel at a certain flow rate.

Click-style oxygen regulators are designed for use in ambulances, hospitals, and portable hospitals and mass casualty situations .

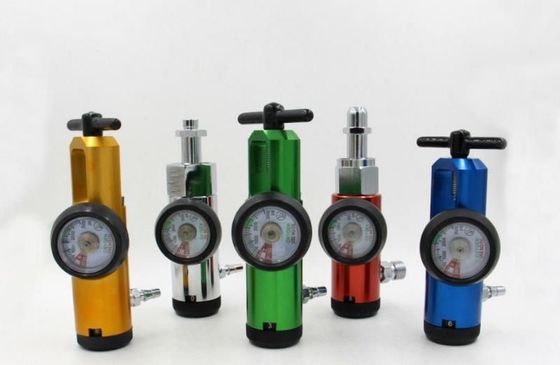

The click-style oxygen regulator is easy to use because you simply turn the click to obtain accurate flow setting. Unlike a traditional oxygen regulator, the click-style oxygen regulator does not need to be in an up-right position in order to function properly. This oxygen regulator is light weight, rugged, and has large, easy to read numbers and fits in confined spaces, we offer four different configurations 0-4L, 0-6L, 0-8L , 0-15L and 0-25L.
Item Name Medical Oxygen Regulator

Item Name	Medical Oxygen Regulator
Material	Aluminum Body with Brass Core
Gas Type	OXYGEN
Inlet Connector	Bull Nose
Outlet Connector	Barb,Diss
Inlet Pressure	0-3000PSI
Outlet Pressure	50PSI
Flow Rate	0-4, 0-6, 0-8, 0-15,0-25 LPM
Flow	0-4L/MIN,12 LEVELS ADJUSTMENT 0,1/32.1/16.1/8.1/4,1/2.3/4,1.01.5,2.0,4.0 INPUT
Pressure	15MPA

A. Features:

1. Full aluminum + chrome plated
2. Easy to read gauge with screw-on polycarbonate lens for durability.
3. Precision engineered pressure compensated design flowmeter for precise flow.
4. sintered metal inlet filter to trap impurities
5. Reliable internal safety relief valve
6. Please inform inlet and outlet thread when ordering.

1.Input pressure:15Mpa
2.Output pressure:0.2-0.3Mpa
3. Automatic Discharge Pressure of The Safety Valve:0.35+_0.05Mpa
4.The Range of Flow: 1-15L/min
5.Packing :10PCS/CTN (color box)
6.Dimension:53× 40 ×18cm

Features
- Easy to use:
Easy to read gauges with enhanced graphics,color-coded knobs for quick gas identification,
- Durable and compact:
Forged brass body, stainless steel bolts, and a housing cap constructed of a zinc-aluminum alloy.
- Designed for performance:
Consistent flow performance over a wide range of cylinder pressures.
