Product Details:
|
| Model NO.: | T11 ISO Tank | Storage Medium: | Moncombustible/Nontoxic |
|---|---|---|---|
| Pressure Level: | Medium Pressure (1.6MPa≤p<10.0MPa) | Condition: | New |
| OEM: | Accepted | Transport Package: | Tank Container |
| Specification: | Customize | Trademark: | WellCare |
| Origin: | China | HS Code: | 7309000000 |
| Production Capacity: | 100 Set/Sets Per Month |
Our Tank Contanier Advantages:
Specification
| Specifications_20ft ISOTank Container | ||
| Tank Type | UN T11 Liquid Tank | |
| Full Frame | ||
| Aplicable Medium | General Liquid Chemicals | |
| Vessel Design Code | ASME VIII DIV.1 | |
| Approval Standard | IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR, UIC, ISO | |
| Main Date | Frame Dimensions | 6058 x 2438 x 2591 mm |
| Capacity | 26000 L | |
| Payload | 32490 Kgs | |
| Working | Pressure | 4 Bar (MAX) |
| Temperature | - 40 to 130 ºC | |
| Details | Vessel | 316 L |

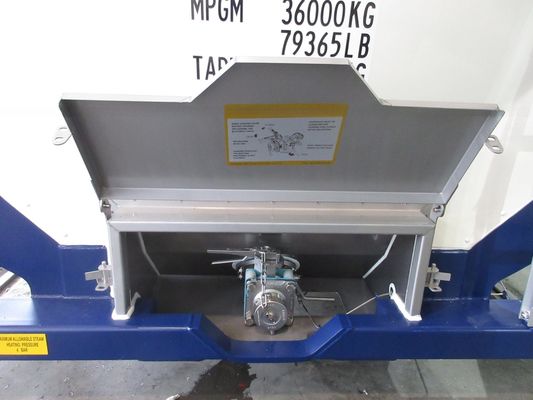

| Discharge | DN80 (Top) & 3'' BSP(Bottom) | |
| Valves | Safety Relief Valve , Air Inlet Ball Valve 45° Internal Foot Valve integrated a Butterfly Valve | |

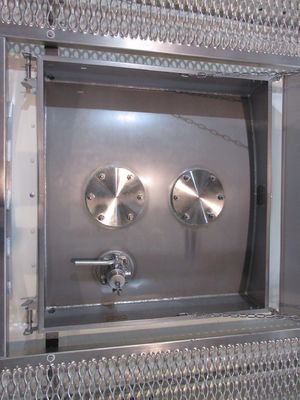

| Other | Manhole, Thermometer | |
| Please contact WellCare to get technical specification for final confirmation. | ||
