Product Details:
|
| Model NO.: | Micro Bulk Tank | Storage Medium: | Moncombustible/Nontoxic |
|---|---|---|---|
| Pressure Level: | Low Pressure (0.1MPa≤p<1.6MPa) | Condition: | New |
| Transport Package: | Tank Container | Specification: | Customize |
| Trademark: | WellCare | Origin: | China |
| HS Code: | 7309000000 | Production Capacity: | 100 Set/Sets Per Month |

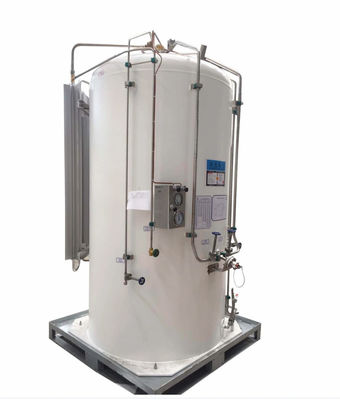

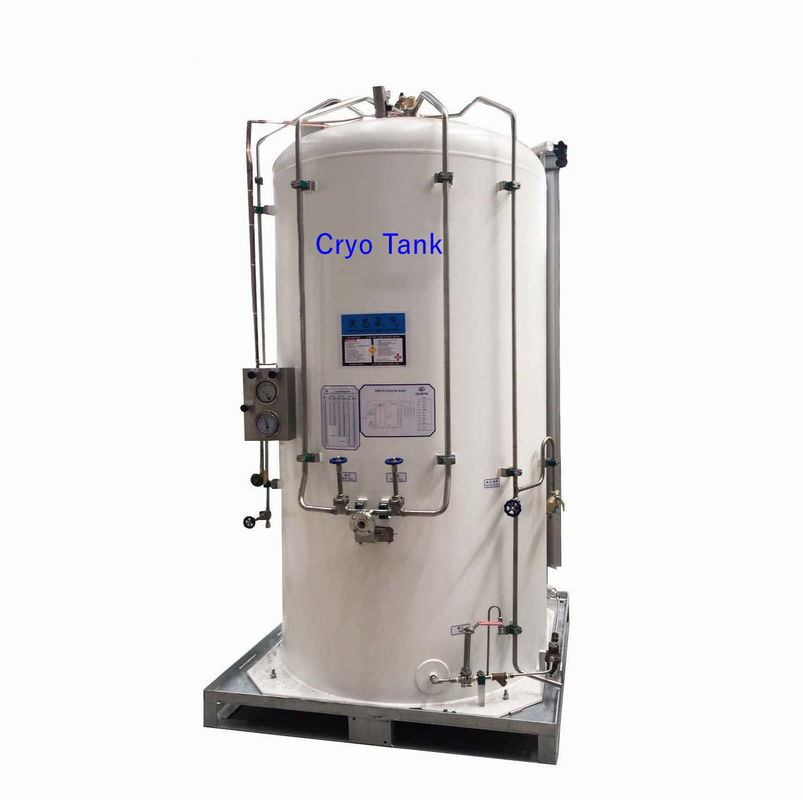

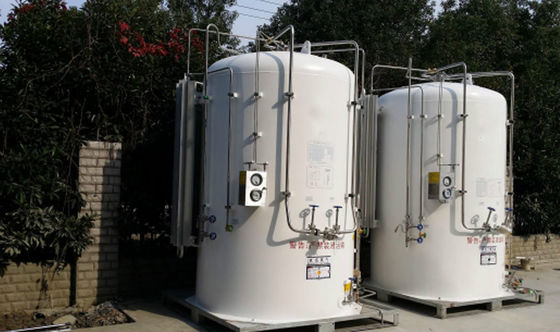

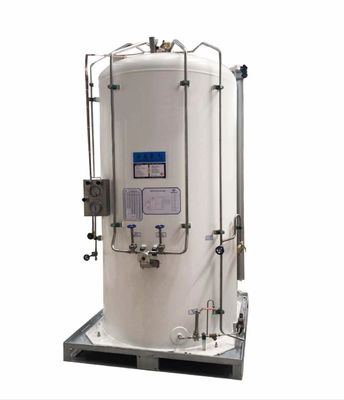

| Product name | Azoda stainless steel low temperature storage tank 3M ³ Oxygen nitrogen hydrogen low temperature storage container industrial gas storage tank support customization |
| Size | 1800*1800*3073mm |
| Volume | 3000L |
| Volume (cubic meters) | 3(m3) |
| Inner material | Stainless Steel |
| Outer material | Stainless Steel |
| Design pressure (MPa) | 1.68MPa |
| Maximum working pressure (MPa) | 1.68MPa |
| Design standards | National standard |
| Working temperature (ºC) | -196 - 60 ºC |
| volume (m3) | working pressure (MPa) | working medium | dimension(mm) | net weigh(kg) |
| 1m3 | 1.6 | LO2,LN2,LAr,LNG | 1300*1300*2326 | 720 |
| 2.5 | LO2,LN2,LAr,CO2 | 1300*1300*2326 | 720 | |
| 3.4 | LO2,LN2,LAr | 1300*1300*2326 | 1096 | |
| 2m3 | 1.6 | LO2,LN2,LAr,LNG | 1750*1750*2741 | 1440 |
| 2.5 | LO2,LN2,LAr,CO2 | 1750*1750*2741 | 1560 | |
| 3.4 | LO2,LN2,LAr | 1600*1600*2390 | 1780 | |
| 3m3 | 1.6 | LO2,LN2,LAr,LNG | 1850*1850*2869 | 1814 |
| 2.5 | LO2,LN2,LAr,CO2 | 1850*1850*2869 | 1990 | |
| 3.4 | LO2,LN2,LAr | 1850*1850*2869 | 2408 | |
| 5m3 | 0.8 | LNG | 2300*2300*3160 | 2426 |
| 1.6 | LO2,LN2,LAr,LNG | 2150*2150*3095 | 2757 | |
| 2.5 | LO2,LN2,LAr,CO2 | 2150*2150*3095 | 3102 | |
| 3.4 | LO2,LN2,LAr | 2150*2150*3095 | 3483 | |
| 7.5m3 | 1.6 | LO2,LN2,LAr,LNG | 2350*2350*3210 | 4326 |
