Product Details:
|
| Model NO.: | ISO Tank | Storage Medium: | Moncombustible/Nontoxic |
|---|---|---|---|
| Pressure Level: | Medium Pressure (1.6MPa≤p<10.0MPa) | Condition: | New |
| Volume: | Customized | Transport Package: | Tank Container |
| Specification: | Customize | Trademark: | WellCare |
| Origin: | China | HS Code: | 7309000000 |
| Production Capacity: | 100 Set/Sets Per Month |
Our Tank Contanier Advantages:

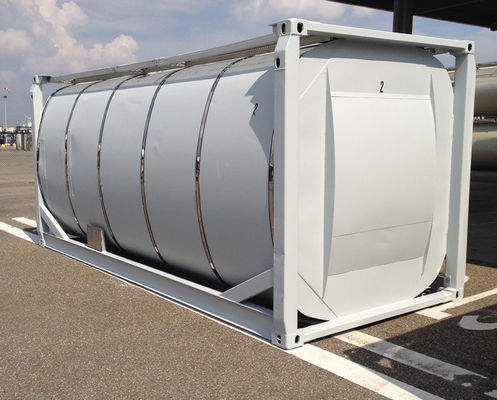

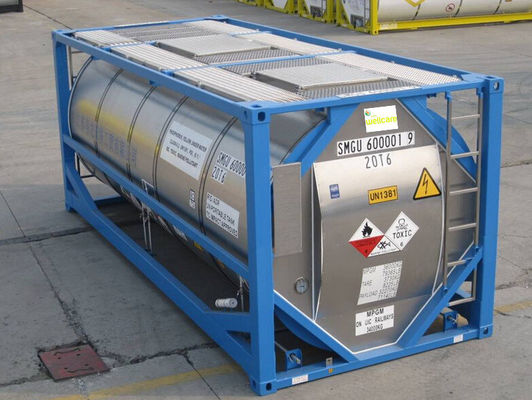

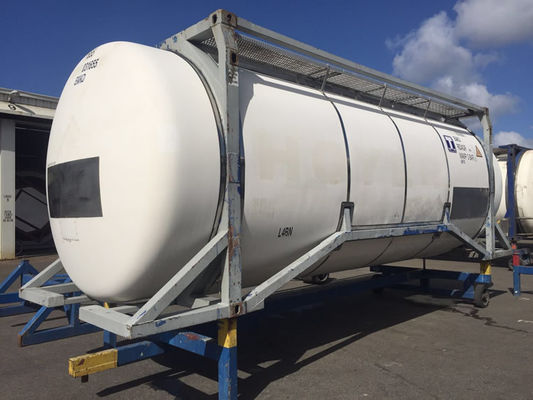

UN Portable T14 Lined 20ft Tank Container
| Specifications | ||
| Frame Dimensions (L x W x H) | 6058 x 2438 x 2591 mm | |
| Nominal Capacity | 17500-21000 litre (±0.75%) | |
| Maximum Gross Mass | 36000 kgs | |
| Tare Mass | 3510 kg (± 3%) | |
| Design Temperature (Frame & Tank) | -40 to +130 °C | |
| Pressure | Working | 4 bar |
| Test | 6 bar | |
| Material | Tank (Shell & Ends) | SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%) |
| Frame | SPA-H or equivalent | |
| Insulation | Shell | Rockwool (50kg/m3) 50mm thick on aluminium foil. |
| Ends | Glasswool (16kg/m3) thickness to suit on aluminium foil. | |
| Manhole | 500mm low profile, 8 point fixing with Super Tanktyt Lid seal. | |
| Lining | PE / Rubber / CHEMLINE | |
| | 1-off. 2½" BSP Supermaxi Highflow relive, without flameproof gauze. Pressure only set at +4.4 bar (63.8psi). The assembly is situated off centre on a tangential tank pad. | |
| Air Inlet assembly | DN 40 ball valve terminating with 1½" BSP connection and cap. The assembly is situated off centre on a tangential tank pad. | |
| Top Discharge | DN80 stainless steel 316 tank pad with a blind flange. The assembly is fitted on centre on a horizontal tank pad. | |
| Thermometer | A surface mounted analogue type is fitted to the rear end dished end of the tank. Dual scale -40°C to +160°C / -40°F to 320°F. The thermometer is fitted with a protection bar. | |
| Design Code | ASME VIII DIV. 1 | |
| Approval | IMDG US DOT CFR 49 RID/ADR CSC TC TIR / Customs UIC ISO 1496/3 | |
