Product Details:
|
| Model NO.: | Cng Cylinder Types | Storage Medium: | Moncombustible/Nontoxic |
|---|---|---|---|
| Pressure Level: | High Pressure (10.0MPa≤p<100.0MPa) | Condition: | New |

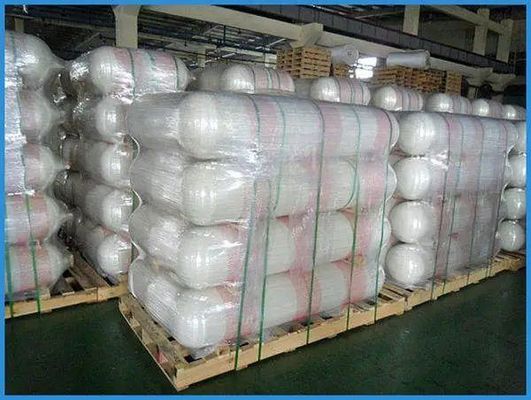

| Transport Package: | Nylon, Box, Transparent PP Bag | Specification: | 860mm |
| Trademark: | Wellcare | Origin: | China |
| HS Code: | 76130010 | Production Capacity: | 100, 000 Pieces For One Year |
CNG-1
The type we supply:
| Part No. | Specification No. | Water Capicity (L) | Outside Diameter (mm) | Height (mm) | Thread Size | Weight (Kg) | Working Pressure (bar) |
| WG1 | CRP-55-0.35-30-T | 0.35 | 60 | 233 | M18*1.5 | 0.45 | 300 |
| WG1 | CRP-55-0485-30-T | 0.48 | 60 | 300 | M18*1.5 | 0.65 | 300 |
| WG1 | CRP-55-0.5-30-T | 0.35 | 60 | 310 | M18*1.5 | 0.7 | 300 |
| WG1 | CRP-101-1.5-20-T | 1.5 | 108 | 207 | M18*1.5 | 1 | 200 |
| WG3 | CRP-105-1.6-20-T | 1.6 | 112 | 270 | M18*1.5 | 1.2 | 200 |
| WG2 | CRP-88-2.0-30-T | 2 | 96 | 432 | M18*1.5 | 1.5 | 300 |
| WG4 | CRP-100-2.17-30-T | 2.17 | 112 | 378 | M18*1.5 | 1.7 | 300 |
| WG5 | CRP-120-2.4-20-T | 2.4 | 128 | 305 | M18*1.5 | 1.6 | 200 |
| WG6 | CRP-120-2.5-20-T | 2.5 | 128 | 317 | M18*1.5 | 1.8 | 200 |
| WG7 | CRP-125-2.7-20-T | 2.7 | 133 | 312 | M18*1.5 | 1.8 | 200 |
| WG8 | CRP-105-3.0-30-T | 3 | 114 | 443 | M18*1.5 | 2.1 | 300 |
| WG9 | CRP-125-4.7-30-T | 4.7 | 137 | 498 | M18*1.5 | 3 | 300 |
| WG10 | CRP-144-6.8-30-T | 6.8 | 157 | 530 | M18*1.5 | 3.9 | 300 |
| WG11 | CRP-162-9.0-30-T | 9 | 175 | 560 | M18*1.5 | 5.2 | 300 |
| WG12 | CRP-162-12.0-30-T | 12 | 175 | 715 | M18*1.5 | 6.8 | 300 |
