Product Details:
|
| Model NO.: | RY-20/40/80/120/160/240 | Customize: | Available |
|---|---|---|---|
| Acetylene Purity: | Above 98% | 10%Agno3 Solution Color: | Colorless |
| Acetylene Extraction Yield %: | Above 96% | Filling Pressure MPa: | Below 2.5 |
| Water Consumption T/H: | 10 Tons Per Hour | Installed Capacity Kw: | 66 Kw |
| Machine Size: | Medium | Usage: | Acetylene |
| Transport Package: | Container Loading | Specification: | Skid-Mounted |
| Trademark: | WellCare | Origin: | China |
| HS Code: | 8405100000 | Production Capacity: | 10 Sets Per Month |
Hot Sale 20M3 /H To 100NM3/H Acetylene Gas Generator 99.9% Purity Acetylene Production Plant
1. The Dissolved acetylene production plant manufactured by our factory are noted for its perfect workmanship in making advance technique in process flow, high reliability in operation, easy to operate and maintain.
2. 20M3 acetylene production plant -Main technical parameter:
Capacity: 20-240Nm3 /h
Purity of acetylene: C2H2>98% PH2<0.02% H2S<0.05%
Pressure at outlet of generator: 400~500mmH2O
Water temperature of generator: <65°C
Size of calcium carbide: 8~250mm
Consumption of calcium carbide: 98kg/h

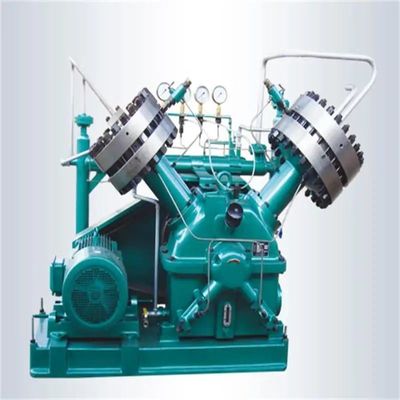

Model of acetylene compressor: Z1.2-0.38/25
Electric motor for compressor: YB132M-4 B4d7.5KW
Charging pressure: 25kgf/cm2
Charging board specific: 20×2
| MODEL | RY-20 | RY-40 | RY-60 | RY-80 | RY-100 | RY-120 | RY-140 | RY-160 |
| Acetylene Volume | 20m3/h | 40m3/h | 60m3/h | 80m3/h | 100m3/h | 120m3/h | 140m3/h | 160m3/h |
| Acetylen Purity | C2H2≥98% | C2H2≥98% | C2H2≥98% | C2H2≥98% | C2H2≥98% | C2H2≥98% | C2H2≥98% | C2H2≥98% |
| Generator outlet Pressure | <0.007Mpa | <0.007Mpa | <0.007Mpa | <0.007Mpa | <0.007Mpa | <0.007Mpa | <0.007Mpa | <0.007Mpa |
| Generator Water Temperature | ≤70°C | ≤70°C | ≤70°C | ≤70°C | ≤70°C | ≤70°C | ≤70°C | ≤70°C |
| Cac2Granularity | 10-200mm | 10-200mm | 10-200mm | 10-200mm | 10-200mm | 10-200mm | 10-200mm | 10-200mm |
| CaC2 Consumption | 95kg/h | 190kg/h | 285kg/h | 380kg/h | 475kg/h | 570kg/h | 665kg/h | 760kg/h |
| Compressor Type | M2V2-20/25 | M2V2-20/25 | M2V2-20/25 | M2V2-20/25 | M2V2-20/25 | M2V2-20/25 | M2V2-20/25 | M2V2-20/25 |
| Motor | 5.5KW | 5.5KW×2 | 5.5KW×3 | 5.5KW×4 | 5.5KW×5 | 5.5KW×6 | 5.5KW×7 | 5.5KW×8 |
| Cylinder Filing Pressure | 2.45Mpa | 2.45Mpa | 2.45Mpa | 2.45Mpa | 2.45Mpa | 2.45Mpa | 2.45Mpa | 2.45Mpa |
| Filling Platform | 36 | 72 | 108 | 144 | 180 | 216 | 252 | 288 |
| Water Consumption | 1.5m3/h | 3m3/h | 4.5m3/h | 6m3/h | 7.5m3/h | 9m3/h | 10.5m3/h | 12m3/h |
