Starch Fermentation Lactic Acid Production Line with Combined Heat Transfer Structure

I'm Online Chat Now

Starch Fermentation Lactic Acid Production Line with Combined Heat Transfer Structure

Starch Fermentation Lactic Acid Production Line with Combined Heat Transfer Structure

Description
Model NO.: WGLA-00 Pressure: Atmospheric
Agitator Model: Turbine Agitator Tower Reactor Type: Plate Tower Reactor
Heating: Hot Water Heating Heat Transfer Structure: Combined
Automatic Grade: Automatic Condition: New
Lactic Acid Content: 99.98% Transport Package: Bulk Load
Specification: Pure H2O2 Trademark: WellCare
Origin: China HS Code: 8419409090
Production Capacity: 10 Sets Per Year

Abstract:

Lactic acid is a naturally occurring organic acid that can be used in a wide variety of industries, such as the cosmetic, pharmaceutical, chemical, food, and, most recently, the medical industries. It can be made by the fermentation of sugars obtained from renewable resources, which means that it is an eco-friendly product that has attracted a lot of attention in recent years.

Keywords: Lactic acid; Fermentation; Renewable resources; Separation processes

LACTIC ACID PROPERTIES:

Properties Values
Density at 20ºC(g/L) 1.249
Melting point (ºC) 52.8 (D): 53.0 (L): 16.8 DL)
Boiling point(ºC) 82.0(DL)a 0.5 mm Hg:122.0 (DL) at 15 mmHg; 103 (D) at 15mmHg
Dissociation constant (pKa) at 25ºC 3.83 (D);3.79 (L)
Heat capacity (J/m olºC) at 20ºC 190 (DL)
Heat of solution (kJ/m ol) at 25ºC 7.79 (L)
Heat of fusion (kJ/m ol) 16.86 (L);11.33 (DL)


APPLICATIONS:

Lactic acid has a wide range of applications in chemicals, pharmaceuticals, and food, and it is a precursor to several products. The uses and demand of lactic acid are shown in Fig. 1. Although commercially available long ago, it is only in recent decades that new uses have resulted in a great increase in the demand.
Lactic Acid Production Line Starch Fermentation Lactic Acid Plants

SEPARATION AND PURIFICATION PROCESSES:

Separation processes are essential to the chemical industry and other related industries. Approximately 40% to 70% of operating and capital costs are associated with the separations steps (Wankat 2007). In lactic acid production processes, development of an effective method of lactic acid separation and purification from fermentation broth is extremely important for economic viability. Although the difference between the boiling point of lactic acid and water is relatively large, it is almost impossible to obtain pure crystalline lactic acid. This is because lactic acid has a high affinity for water and a dimer of lactate is formed when lactic acid concentrations are sufficiently high.

Lactic Acid Production Line Starch Fermentation Lactic Acid Plants

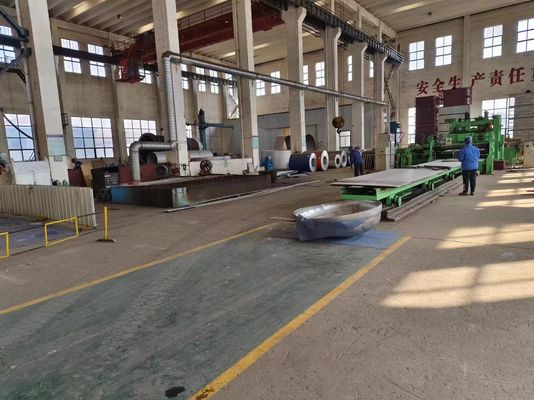

Factory Workshop Presents:

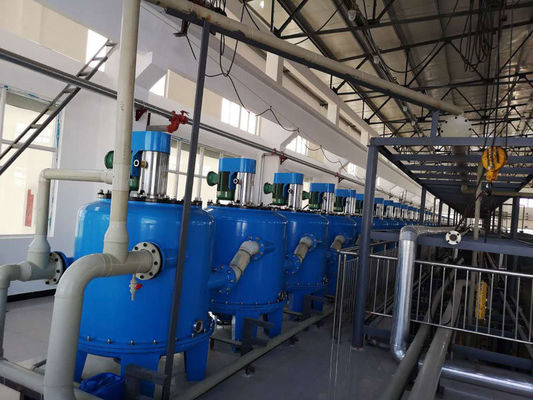

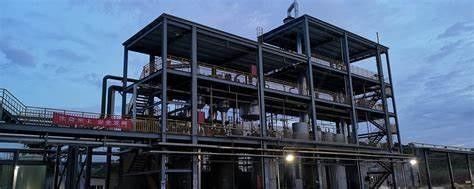

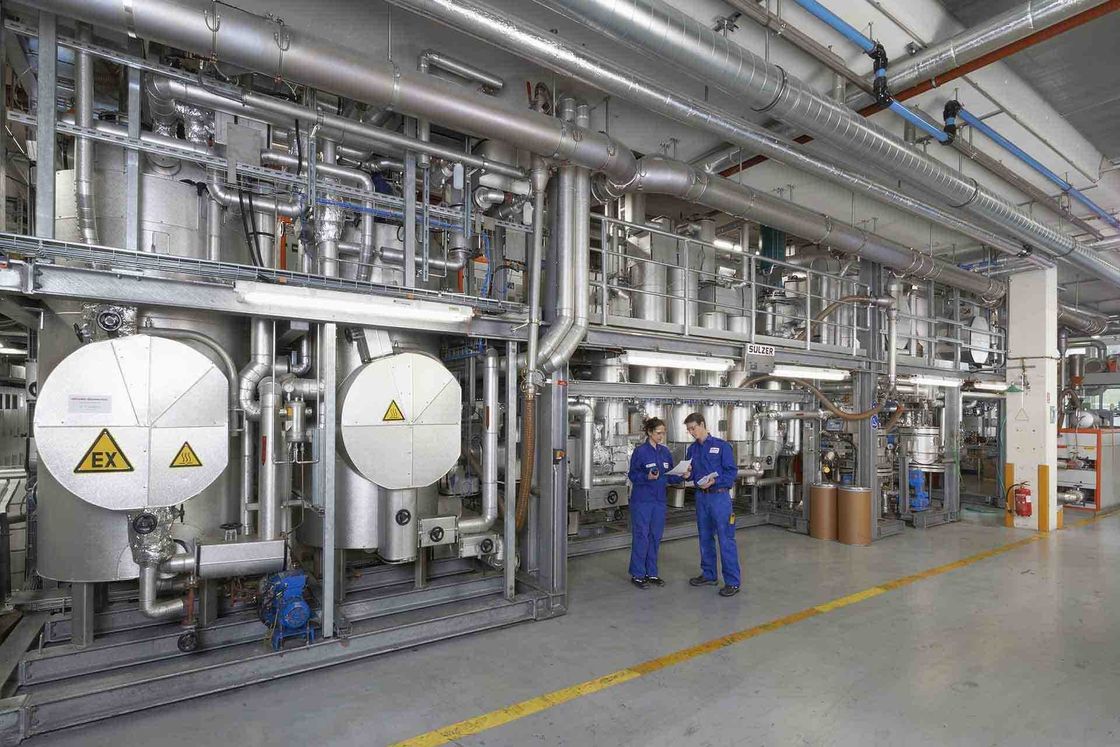

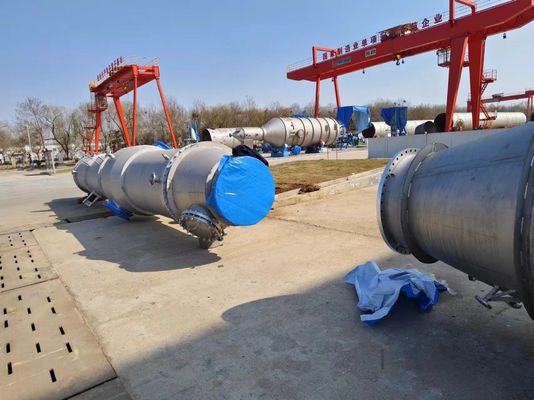

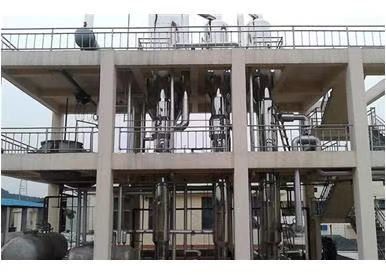

Lactic Acid Production Line Starch Fermentation Lactic Acid Plants
Lactic Acid Production Line Starch Fermentation Lactic Acid Plants
Lactic Acid Production Line Starch Fermentation Lactic Acid Plants

Lactic Acid Production Line Starch Fermentation Lactic Acid Plants
Lactic Acid Production Line Starch Fermentation Lactic Acid Plants
Lactic Acid Production Line Starch Fermentation Lactic Acid Plants
