WGAP Ammonia Production Companies for 10-20% Ammonia Water Preparation Concentration

Project Characteristic Words: Ammonia Recovery, Preparation of Ammonia, Ammonia Concentration

This device is suitable for the recovery and disposal of various high-concentration ammonia-containing mixed gases.

The highly concentrated ammonia produced in the aluminum ash disposal industry, rubber industry, fine chemical industry, and agrochemical industry at different concentrations contains other components such as water vapor, methane, and hydrogen.


Our company has an ammonia recovery process, which can prepare 10-20% concentrated ammonia. Recycling as a product.

(Subsequently, the high-concentration ammonia water can be converted into ammonium sulfate, a resource product, which belongs to the chemical salt category, and is packaged for sale after the reaction crystallization system, drying system and packaging system)

Processing scale: 0-10000Nm3/h

Treatment concentration: 1% (V) - 100% (V)

Ammonia preparation concentration: 10-20%

Description of the treatment process:

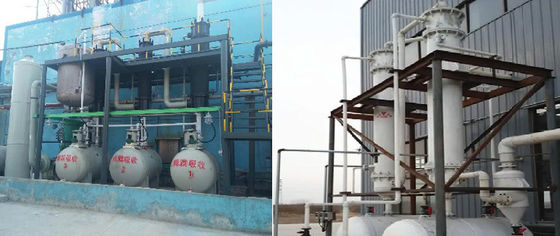

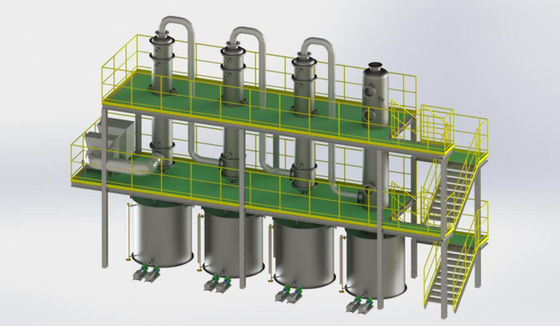

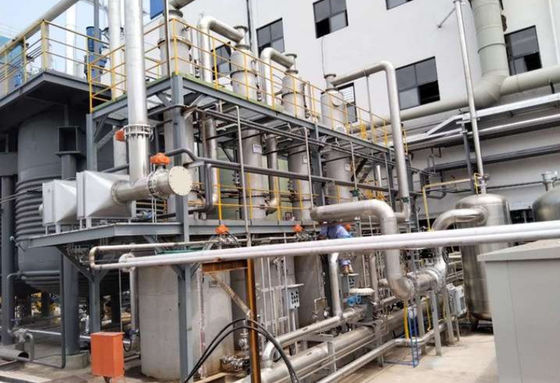

The high-concentration ammonia gas is first sent to the secondary pre-cooler, and after cooling, it enters the falling film recovery device (ammonia recovery device), and the recovered residual waste gas enters the first-stage acid spray tower to treat the standard discharge.

After the exhaust gas is collected through the exhaust gas ventilation system:

In the first step, the high-concentration ammonia gas is cooled and dewatered by the pre-cooler before entering the next step.

In the second step, the falling film is selected to absorb ammonia, the third circulating liquid is hit to the second circulating liquid, and the second circulating liquid is hit to the first circulating liquid, which is gradually concentrated and finally the ammonia concentration meets the recovery requirements;

In the third step, the last residual ammonia gas is discharged after entering the first-stage acid spray tower.

1: product advantages

Ammonia preparation concentration: 10-20%;

Processing capacity: 0-10000Nm³/h;

Treatment concentration: 1%-100%V;

ammonia recovery process;

10-20% concentrated ammonia can be prepared as a product for recycling;

It is suitable for the recovery and disposal of various high-concentration ammonia-containing mixed gases;

High-efficiency, energy-saving, environmentally friendly overall process design;

2: Safety design

The tower and ancillary equipment are electrostatically grounded;

It can be set up in Class A explosion-proof area;

Electrical, instrument explosion-proof, explosion-proof wire winding tube installation;
